Description

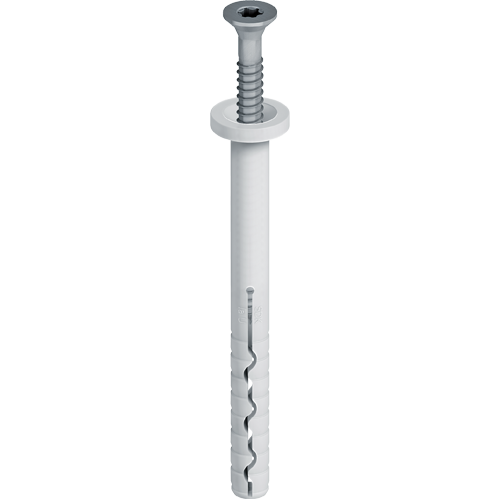

Ejot SDKU 8 x 45mm (Box of 100)
Applications
- Fastening of rail-systems
- Screw-in anchor for rails
- For fixing holding and base rails
- Approved for all categories of building materials
Properties
- Approved for all categories of building materials
- Shortest embedment depths, minimum drill hole depths
- Highest loads for maximum safety
- Economic anchor usage
- Premounted screw for quick installation
- To compensate facade tolerances use spacers EJOT AS
Technical specifications
- Anchor diameter : 8 mm
- Collar diameter : 16 mm
- Drill hole depth h1 > : 35 mm (75 mm)
- Embedment depth hef> : 25 mm (65 mm)
- Screw drive: TX30
- Use categories acc. to ETA: A, B, C, D, E
- German DIBt approval : Z-21.2-1769
- European Technical Approval : ETA-04/0023
