Schluter KERDI DRAIN Sets


Option: KD10H40GVED1S - Design 1 Horizontal
Price:
(
Request for best price
per pack )
(
Request for best price
per pack )

Description



Schluter KERDI DRAIN Sets are complete sets for installing a point drain as part of a wetroom, or shower system with reliable connections to bonded waterproofing assemblies with Schluter KERDI or other bonded waterproofing systems in interior areas. Horizontal and vertical connection options are available along with an alternative grate design for vertical connections.

Schluter KERDI DRAIN Sets combine a Schluter KERDI DRAIN Trap and a Schluter KERDI DRAIN Grate & Frame Set, and are suitable for use with the Schluter KERDI SHOWER T/TS/TT Trays. These sets include the following products:

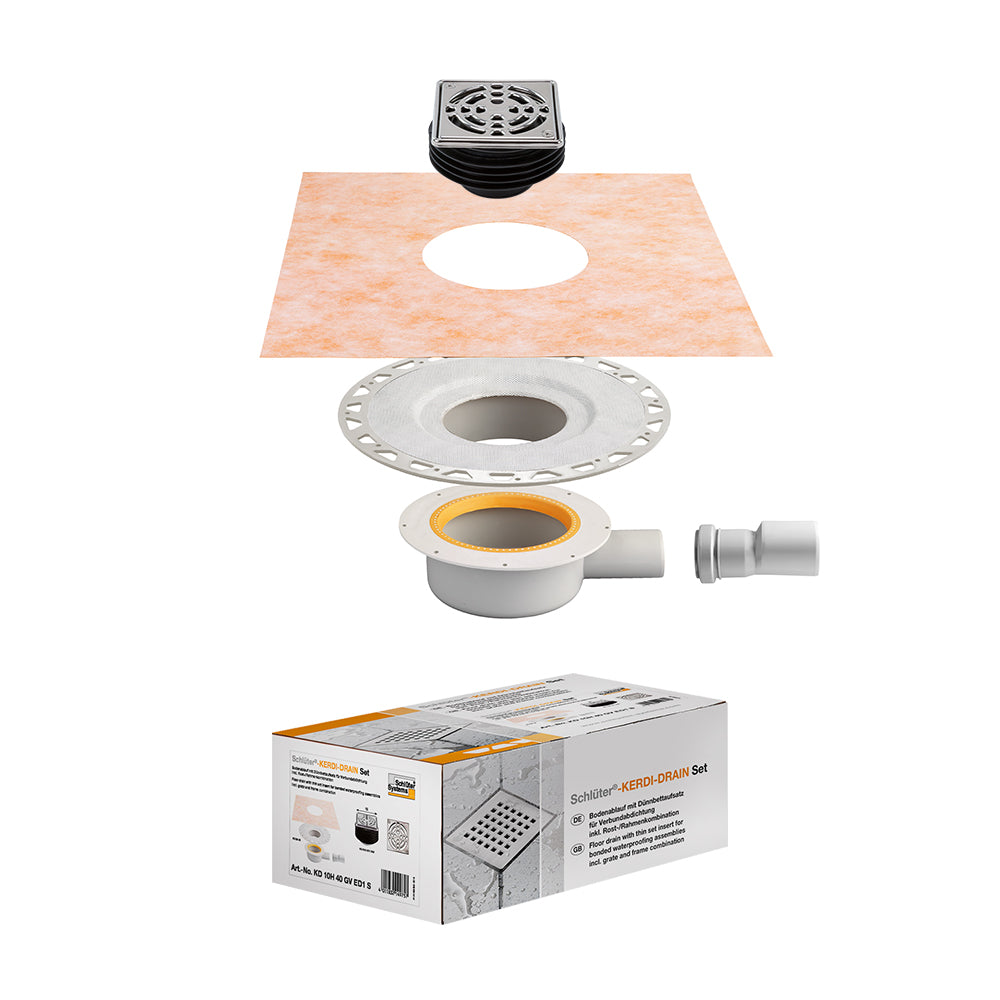

Schluter KERDI DRAIN Set KD10H40GVED1S:
Includes:

  • 1 x Horizontal Interior KERDI DRAIN Trap with DN40/50 outlet – KDBH40.
    Drain capacity according to DIN EN 1253:
    With 2 cm head of water = 0.4 l/s (24 l/min)
    With 1 cm head of water = 0.38 l/s (23 l/min)
  • 1 x 100mm x 100mm KERDI DRAIN Grate & Frame Set – Design 1, Stainless steel with screw fastening and integrated odour trap.
  • 1 x Schluter KERDI Collar

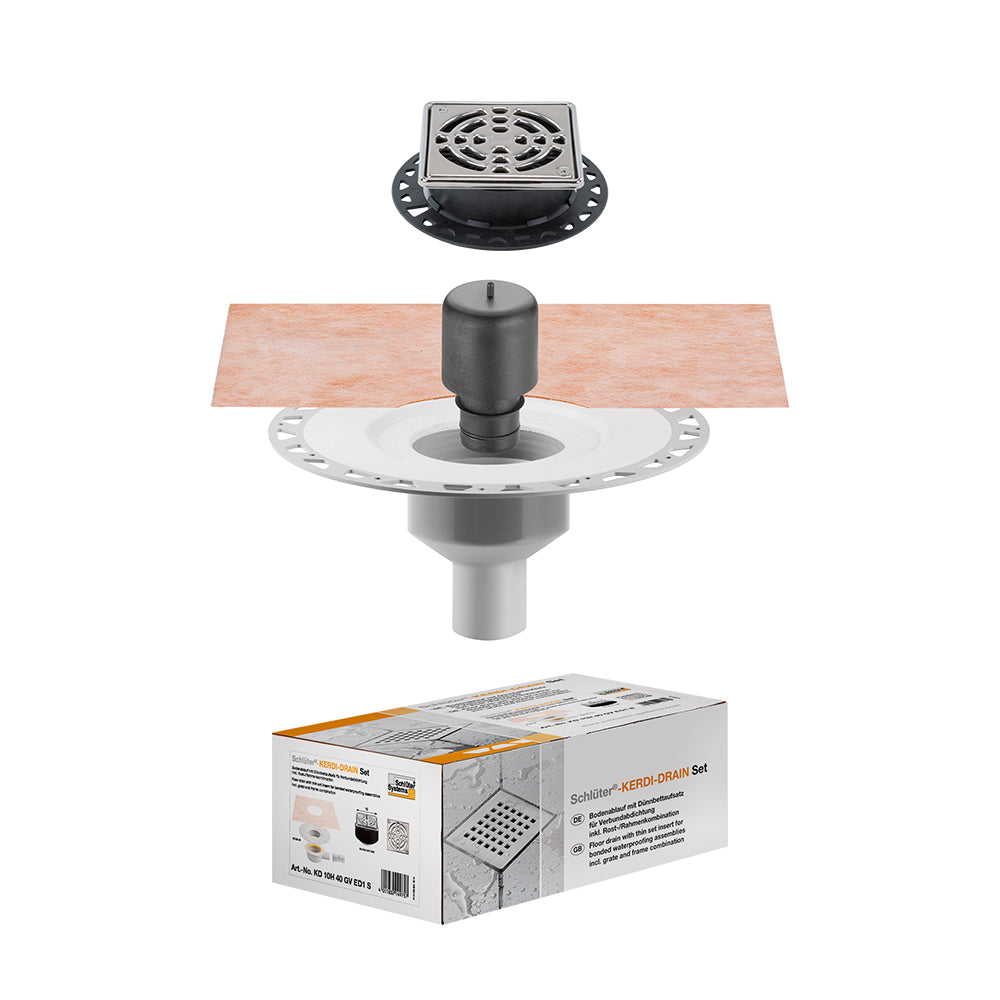

Schluter KERDI DRAIN Set KD10V50GVED1S:
Includes:

  • 1 x Vertical Interior KERDI DRAIN Trap with DN50 outlet and integrated odour trap – KDBV50GV.
    Drain capacity according to DIN EN 1253:
    With 2 cm head of water = 0.6 l/s (36 l/min)
    With 1 cm head of water = 0.5 l/s (30 l/min)
  • 1 x 100mm x 100mm KERDI DRAIN Grate & Frame Set – Design 1, Stainless steel with screw fastening and integrated height adjustment and dirt trap.
  • 1 x Schluter KERDI Collar

Schluter KERDI DRAIN Set KD10V50GVED3:
Includes:

  • 1 x Vertical Interior KERDI DRAIN Trap with DN50 outlet and integrated odour trap – KDBV50GV.
    Drain capacity according to DIN EN 1253:
    With 2 cm head of water = 0.6 l/s (36 l/min)
    With 1 cm head of water = 0.5 l/s (30 l/min)
  • 1 x 100mm x 100mm KERDI DRAIN Grate & Frame Set – Design 3, Brushed stainless steel with integrated height adjustment and dirt trap.
  • 1 x Schluter KERDI Collar





Technical Data Sheet
