Schluter KERDI DRAIN Traps


Option: Horizontal - DN40 - KDBH40
Price:
(
Request for best price
per pack )
(
Request for best price
per pack )

Description

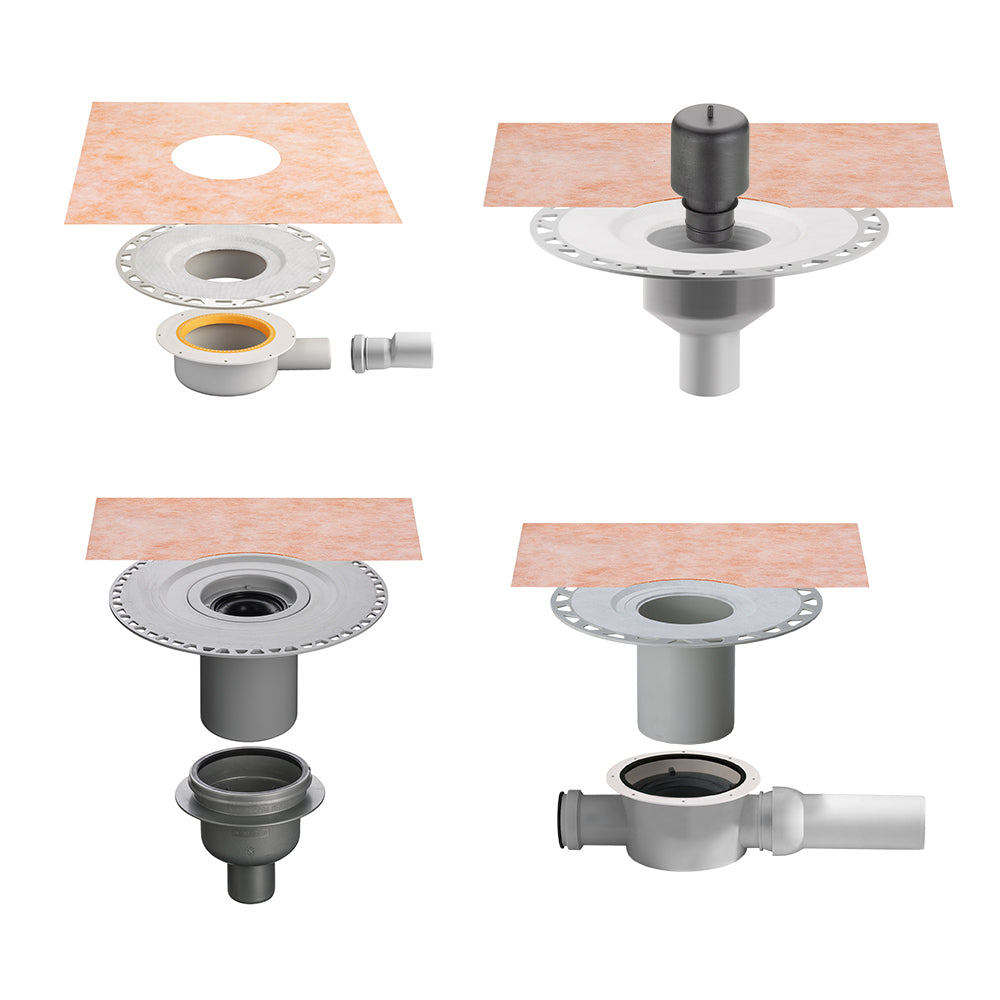

Schluter KERDI DRAIN Traps are floor drain systems for the simple and secure connection of bonded waterproofing membranes to the drainage system of buildings. It is a modular structure and can be individually assembled to match every requirement. There are a variety of different vertical or horizontal drain bodies that are available with or without integrated odour traps.

Schluter KERDI DRAIN Traps are designed to be integrated into the floor assembly and connected to the drainage system. This includes wooden assemblies, Schluter KERDI BOARD Assemblies, concrete screeds and the Schluter KERDI SHOWER T/TS/TT Trays

Schluter KERDI DRAIN Traps are available in the following options:

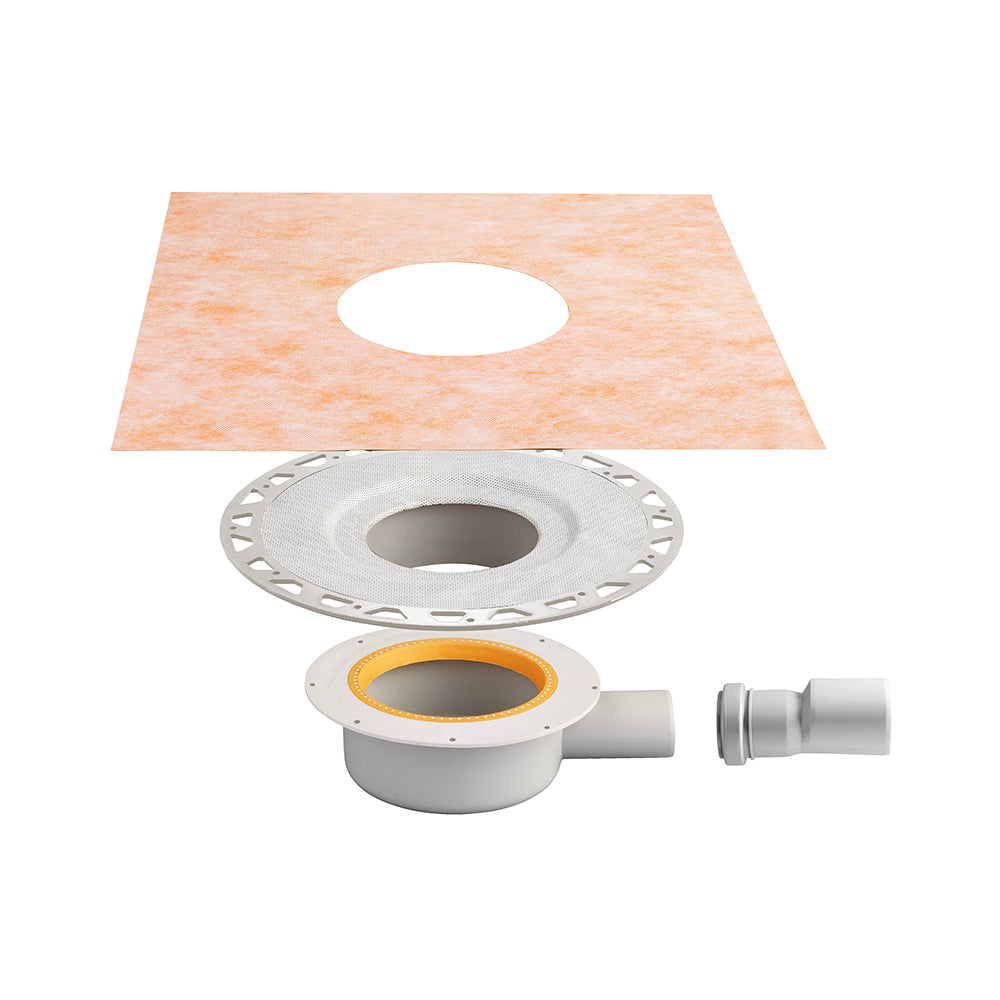

Horizontal Interior Floor Drain Set DN40 without odour trap – KDBH40

DN 40 (40 mm) horizontal drain outlet with rigid connector.
Drain capacity according to DIN EN 1253:
With 2 cm head of water = 0.4 l/s (24 l/min)
With 1 cm head of water = 0.38 l/s (23 l/min)
Water trap height: 3 cm
Product Code: KDBH40
Supplied unit:
–Drain body
–Outlet connector DN 40/ DN 50
–Thin-set insert DN 100
–Schluter KERDI Collar
This trap is for use with only 100mm x 100mm Schluter KERDI DRAIN Grate/Frame sets with an integrated odour trap.


Schluter KERDI DRAIN KDBH40 - Cross Section

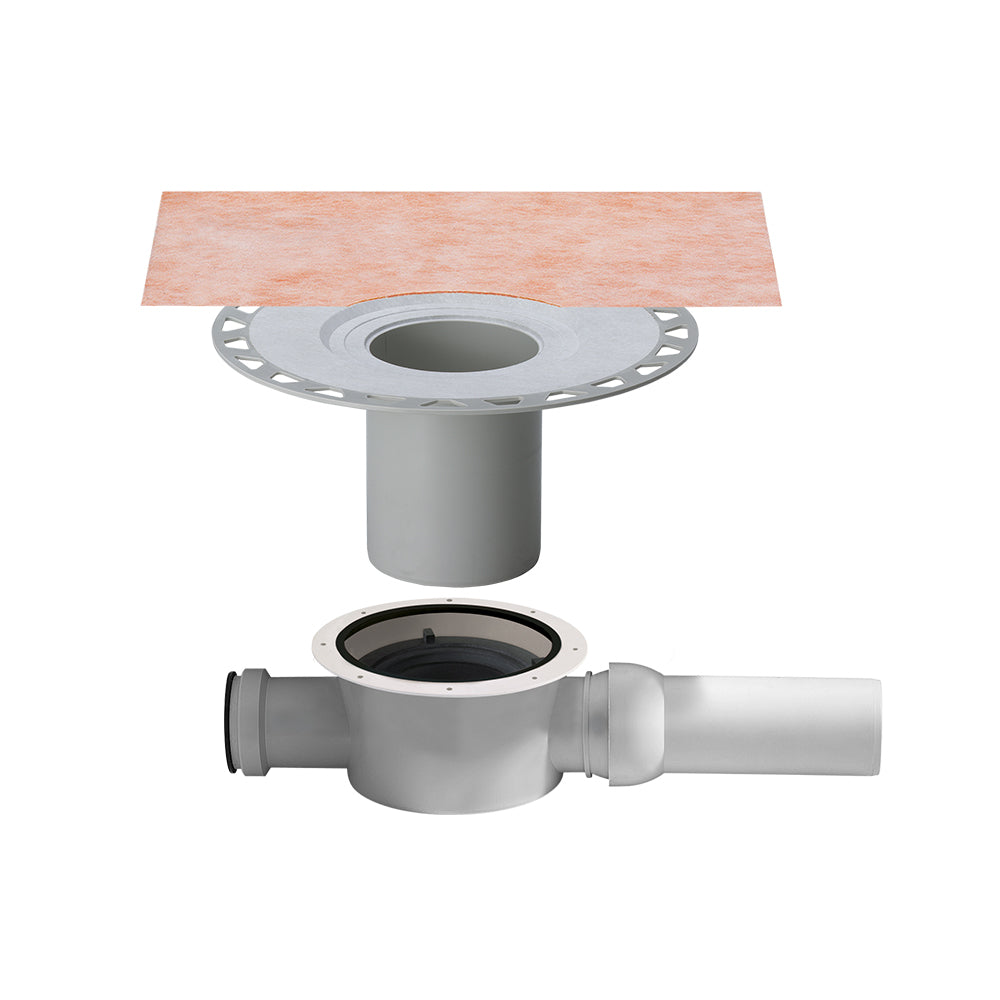

Horizontal Interior Floor Drain Set DN50 with odour trap – KDBH50GV

Inlet DN 40 (40 mm), outlet DN 50 (50 mm) with pivot connection.
Drain capacity according to DIN EN 1253:
With 2 cm head of water = 0.6 l/s (36 l/min)
With 1 cm head of water = 0.55 l/s (33 l/min)
Water trap height: 3 cm
Product Code: KDBH50GV
Supplied unit:
–Drain body
–Thin-set insert DN 100
–Schluter KERDI Collar
This trap is for use with 100mm x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBH50GV - Cross Section

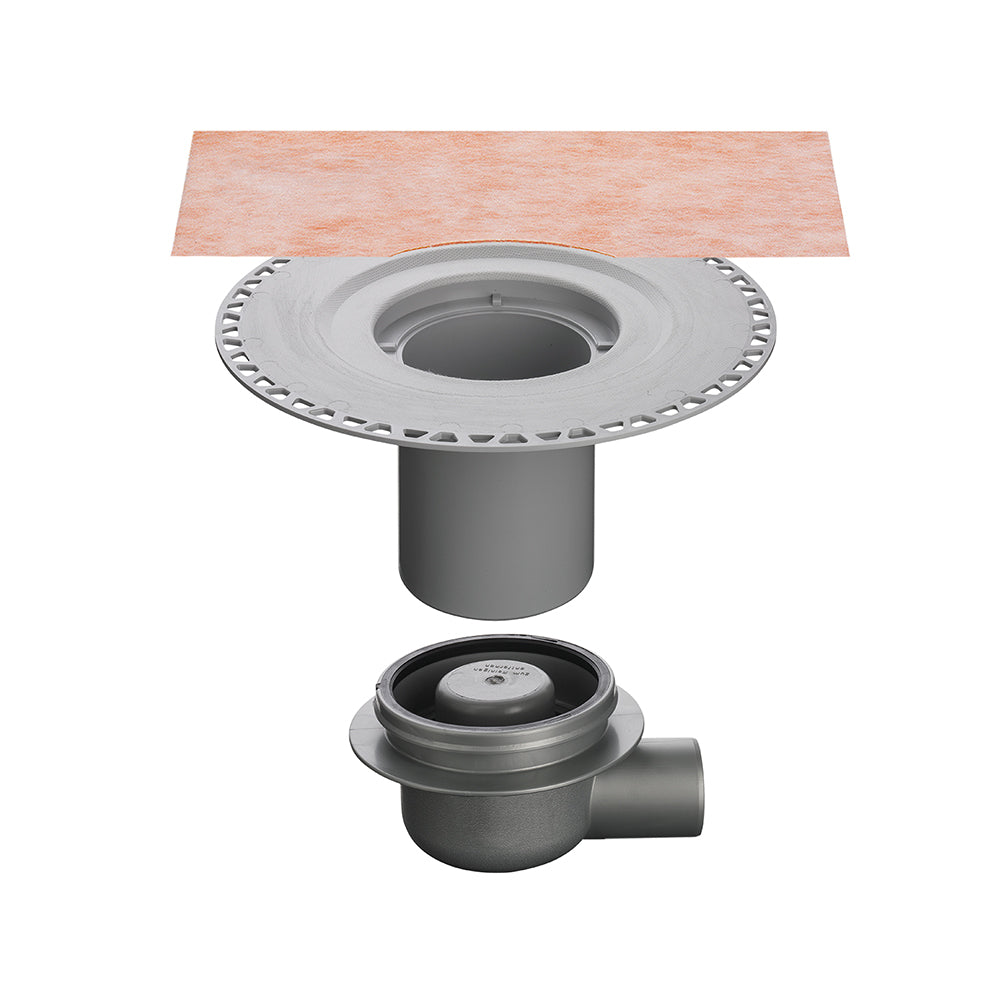

Horizontal Interior Floor Drain Set DN50/70 with odour trap – KDBH5070GVB

Drain DN 50 (50 mm) with rigid connector.

Product Code: KDBH5070GVB
Supplied unit:
–Drain body
–Outlet connector DN 50/DN 70
–Thin-set insert DN 100
–Schluter KERDI Collar
This trap is only for use with the 150mm x 150mm Schluter KERDI DRAIN Grate/Frame set KDR15ED1SB, with no odour trap.


Schluter KERDI DRAIN KDBH5070GVB - Cross Section

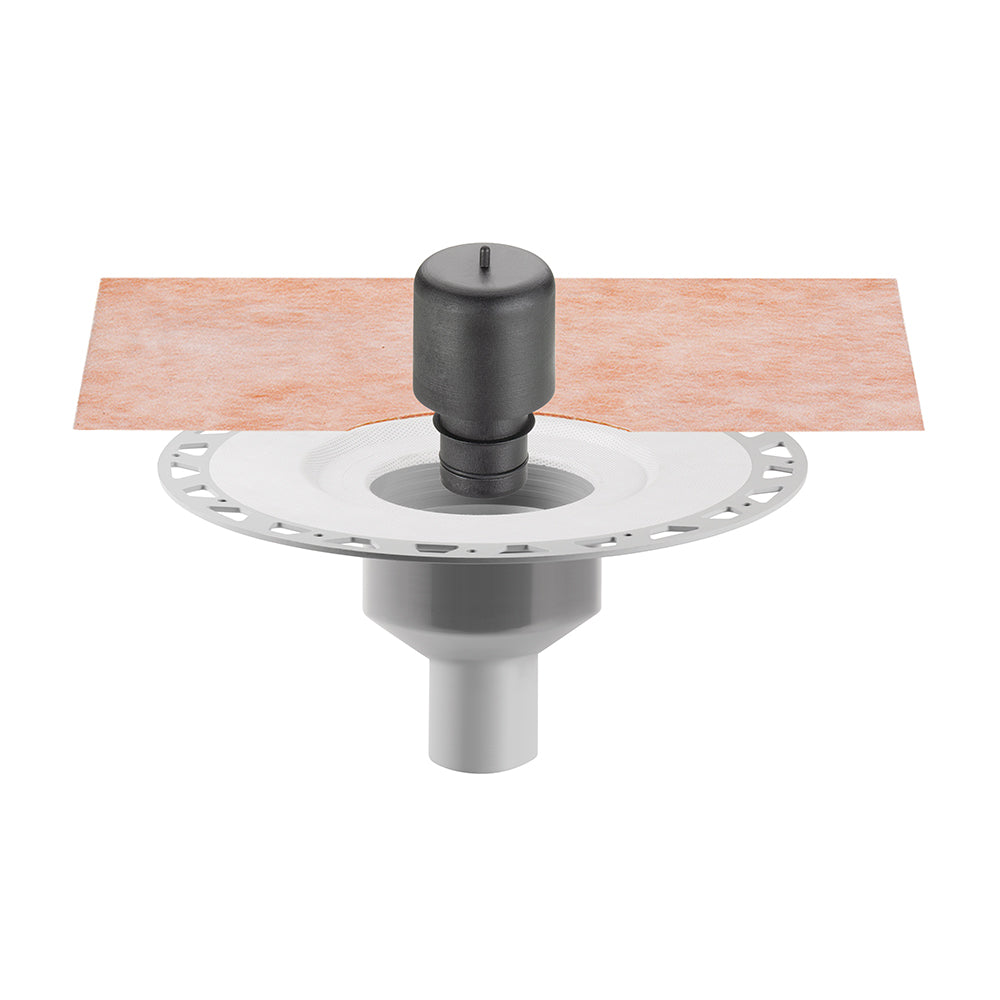

Vertical Interior Floor Drain Set DN50 with odour trap – KDBV50GV

Thin-set floor drain with odour trap Drain DN 50 (50 mm).

Product Code: KDBV50GV
Supplied unit:
–Thin-set floor drain DN 50
–Two-piece odour trap
–Schluter KERDI Collar
This trap is for use with 100mm x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBV50GV - Cross Section

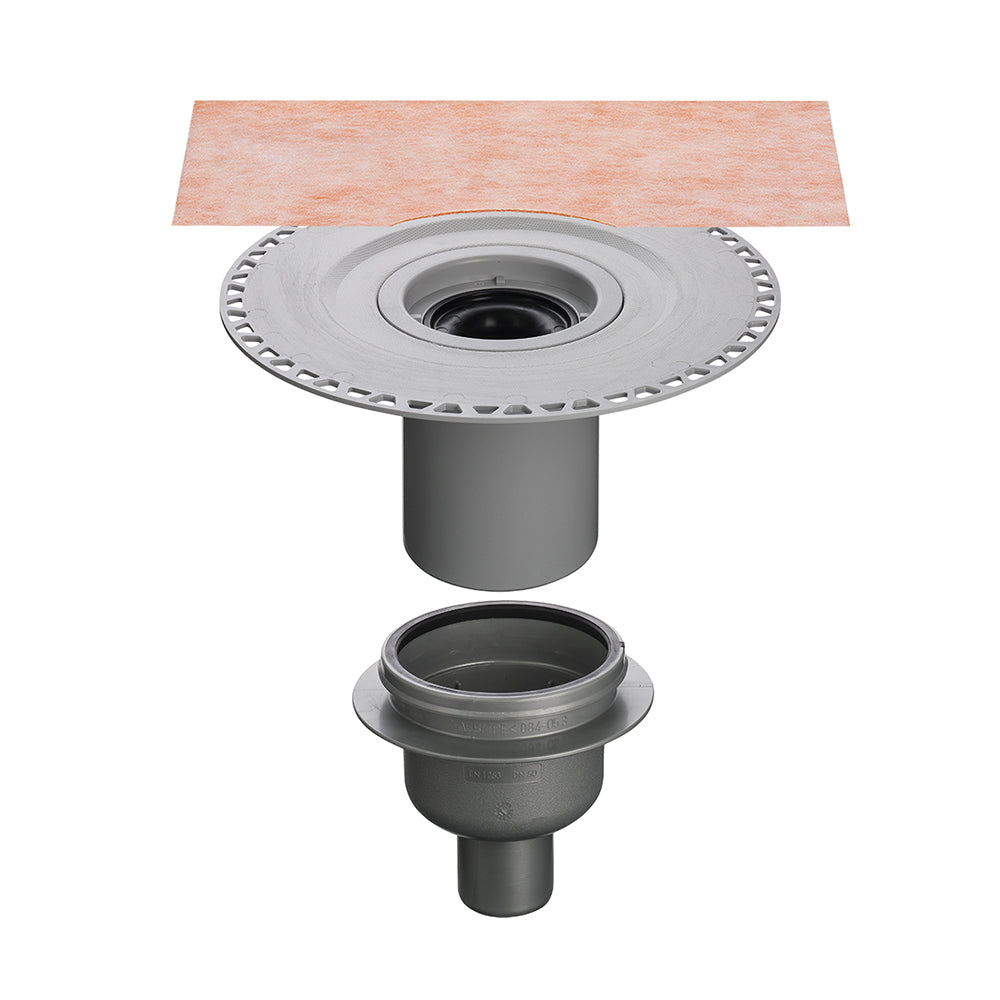

Vertical Interior Floor Drain Set DN50 with odour trap – KDBV50GVB

Thin-set floor drain set DN 50 with odour trap Drain DN 50 (50 mm).

Product Code: KDBV50GVB
Supplied unit:
–Drain body
–Thin-set insert DN 100
–Schluter KERDI Collar
This trap is for use with only 100mm x 100mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBV50GVB - Cross Section

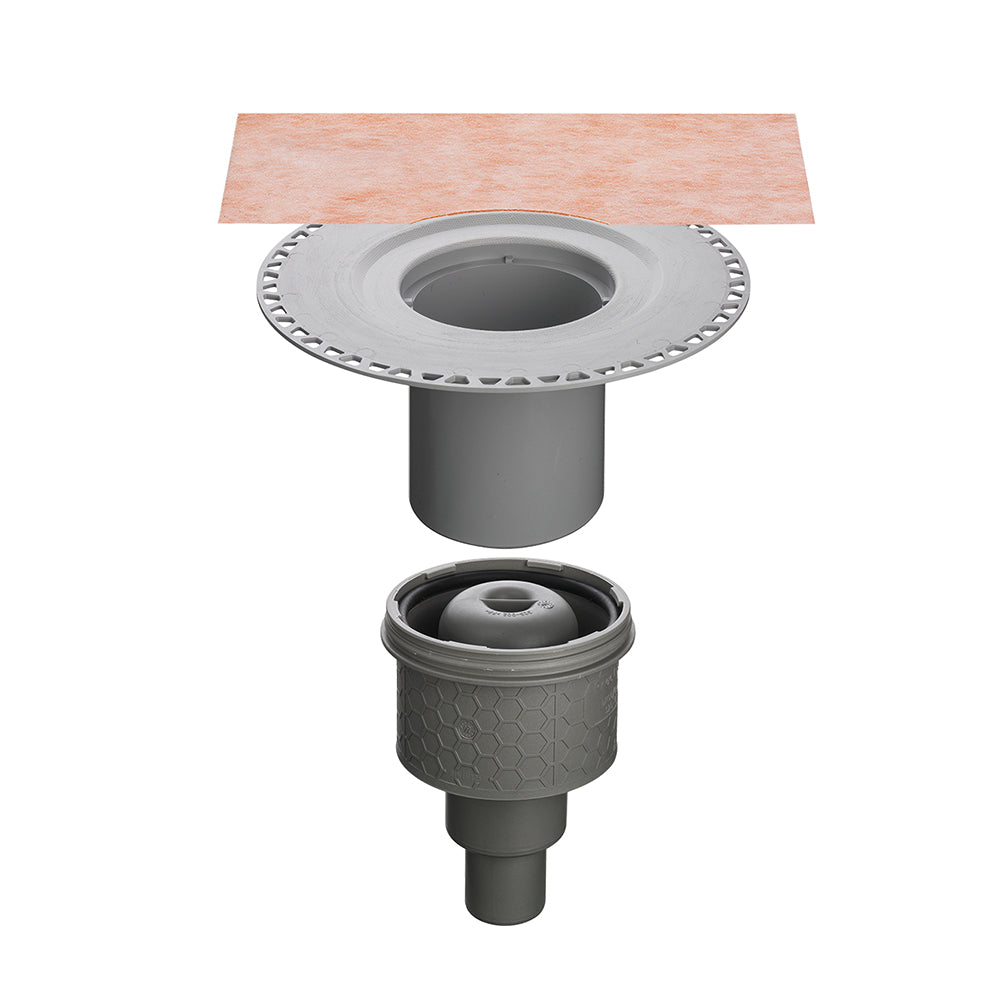

Vertical Interior Floor Drain Set DN50 with odour trap – KDBAV50GVB

Thin-set floor drain set DN 50 with odour trap Drain DN 50 (50 mm).

Product Code: KDBAV50GVB
Supplied unit:
–Drain body
–Thin-set insert DN 125
–Schluter KERDI Collar
This trap is only for use with the 150mm x 150mm Schluter KERDI DRAIN Grate/Frame set KDR15ED1SB, with no odour trap.


Schluter KERDI DRAIN KDBAV50GVB - Cross Section

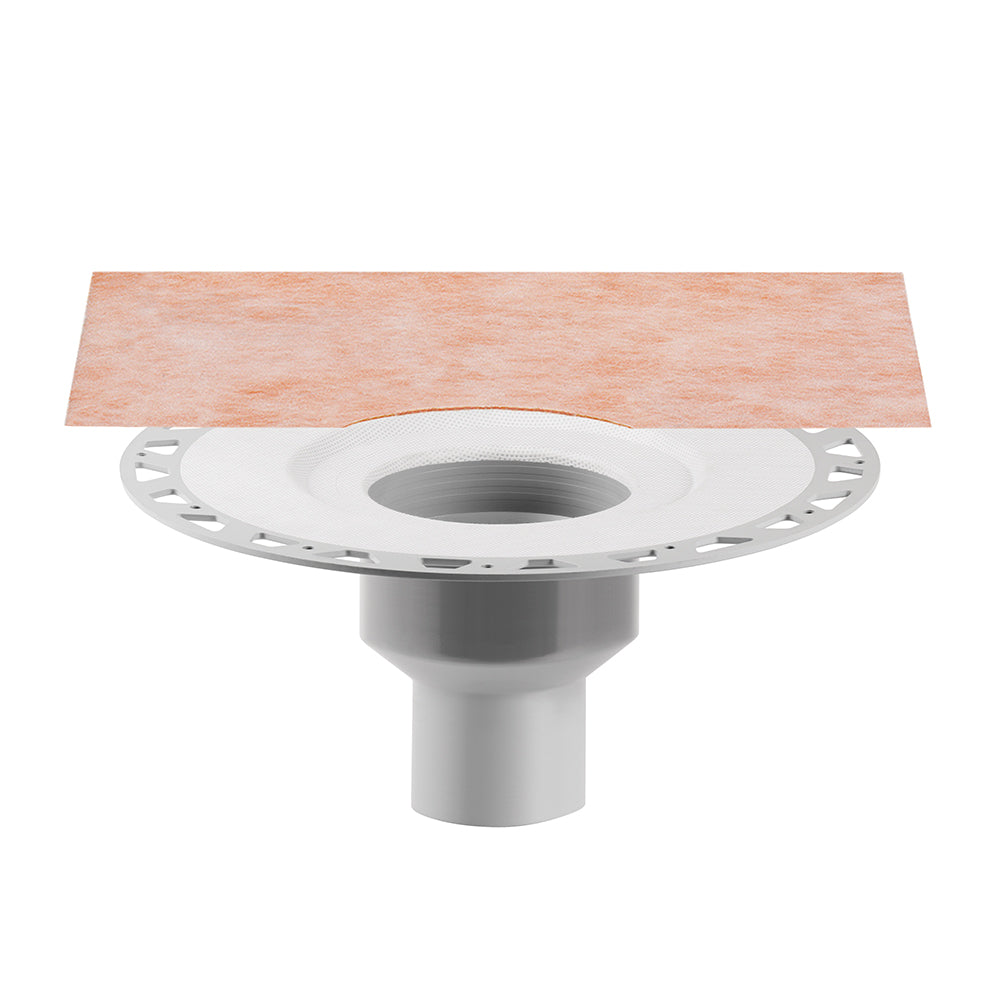

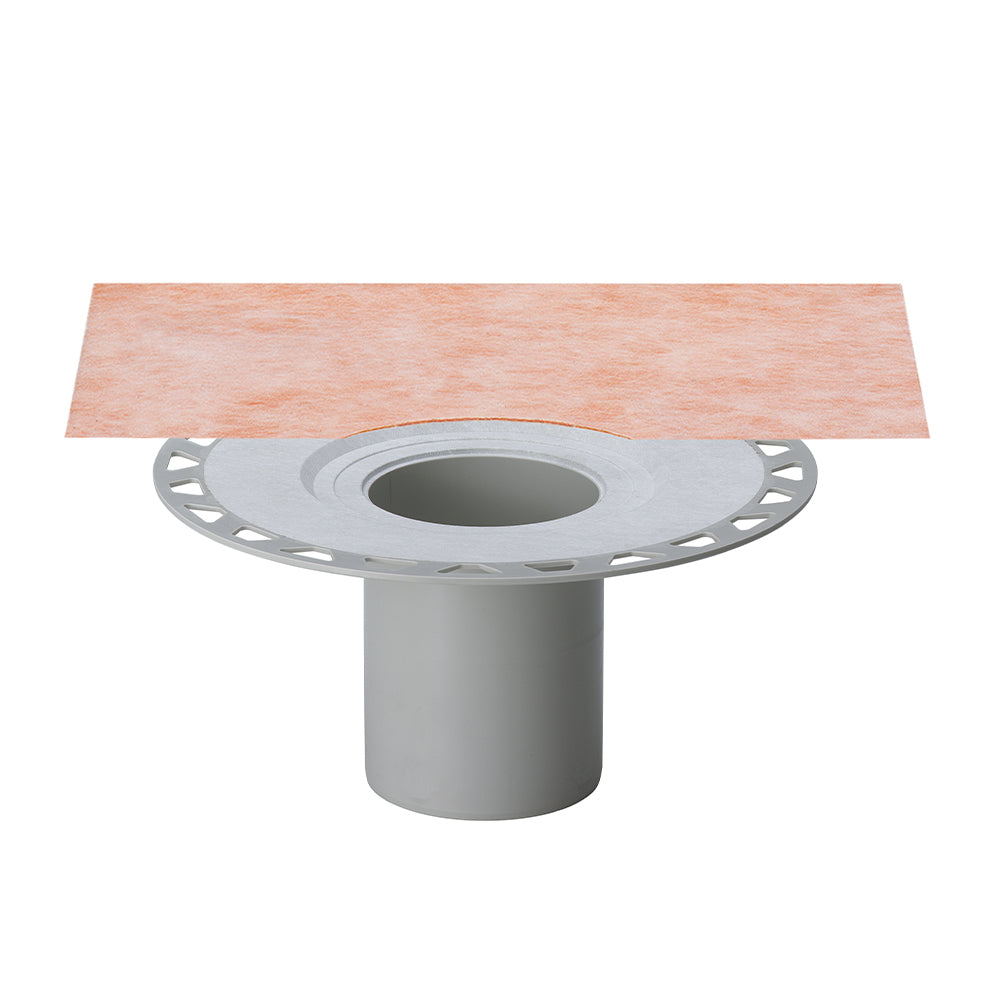

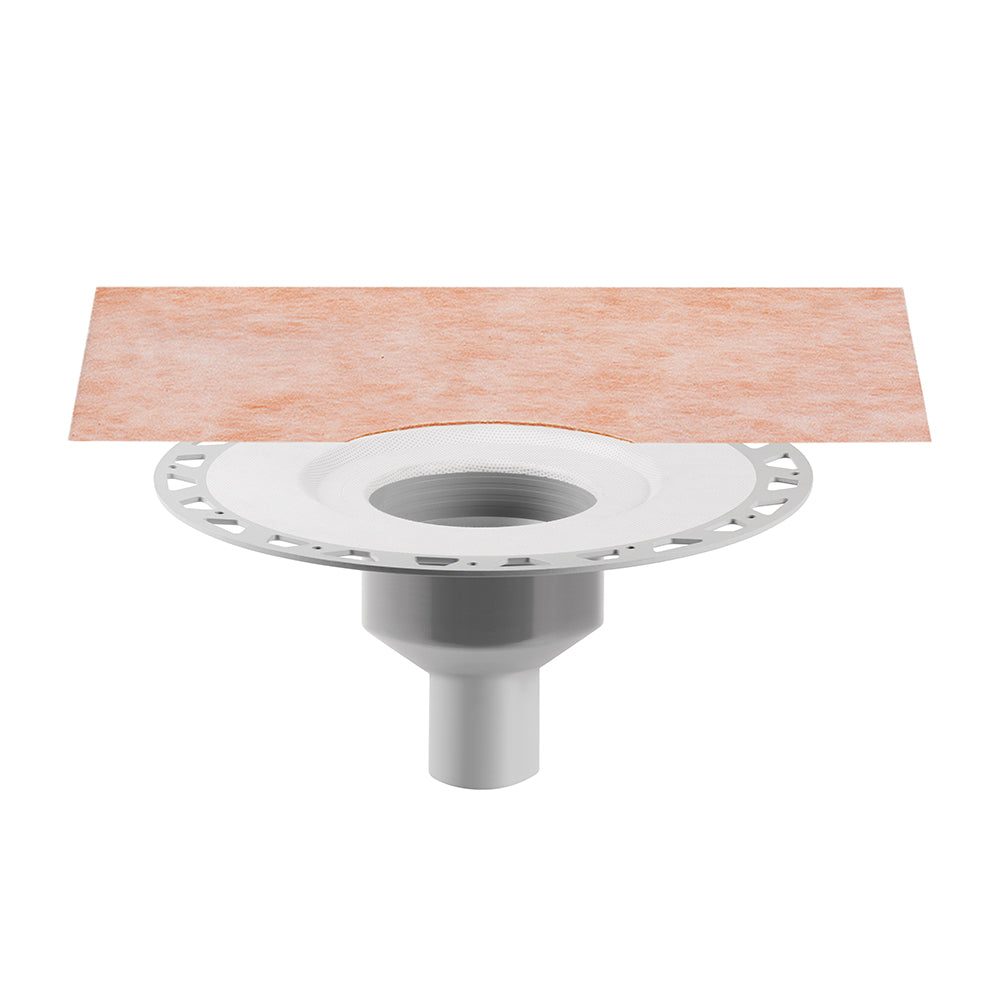

Vertical Interior/Exterior Floor Drain Set DN50/70/100 without odour trap – KDBV50/KDBV70/KDBV100

Thin-set floor drain without odour trap, available in DN50 (50 mm), DN70 (70 mm) and DN100 (100 mm) outlet sizes.

Product Codes: DN50 – KDBV50, DN70 – KDBV70, DN100 – KDBV100
Supplied unit:
–Drain body
–Schluter KERDI Collar
These traps are for use with 100mm x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with or without an odour trap, depending on the interior or exterior placement of the drain.


Schluter KERDI DRAIN KDBV50/70/100 - Cross Section

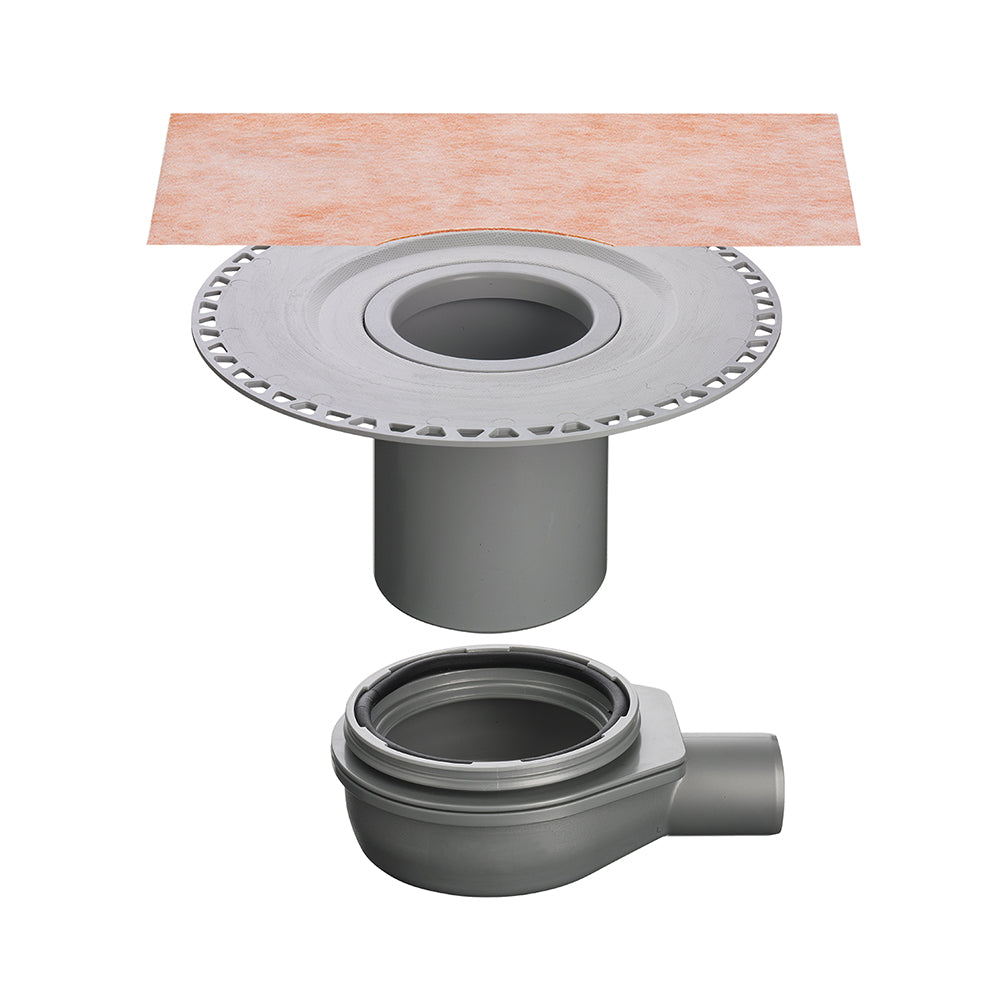

Horizontal Exterior Floor Drain Set DN50 without odour trap – KDBH50B

Floor drain set DN 50 without odour trap. Drain DN 50 (50 mm) with rigid connector.
Drain capacity: 1.4 l/s (84 l/min)
Product Code: KDBH50B
Supplied unit:
–Drain body
–Thin-set insert DN 125
–Schluter KERDI Collar
This trap is for use with 100 x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBH50B - Cross Section

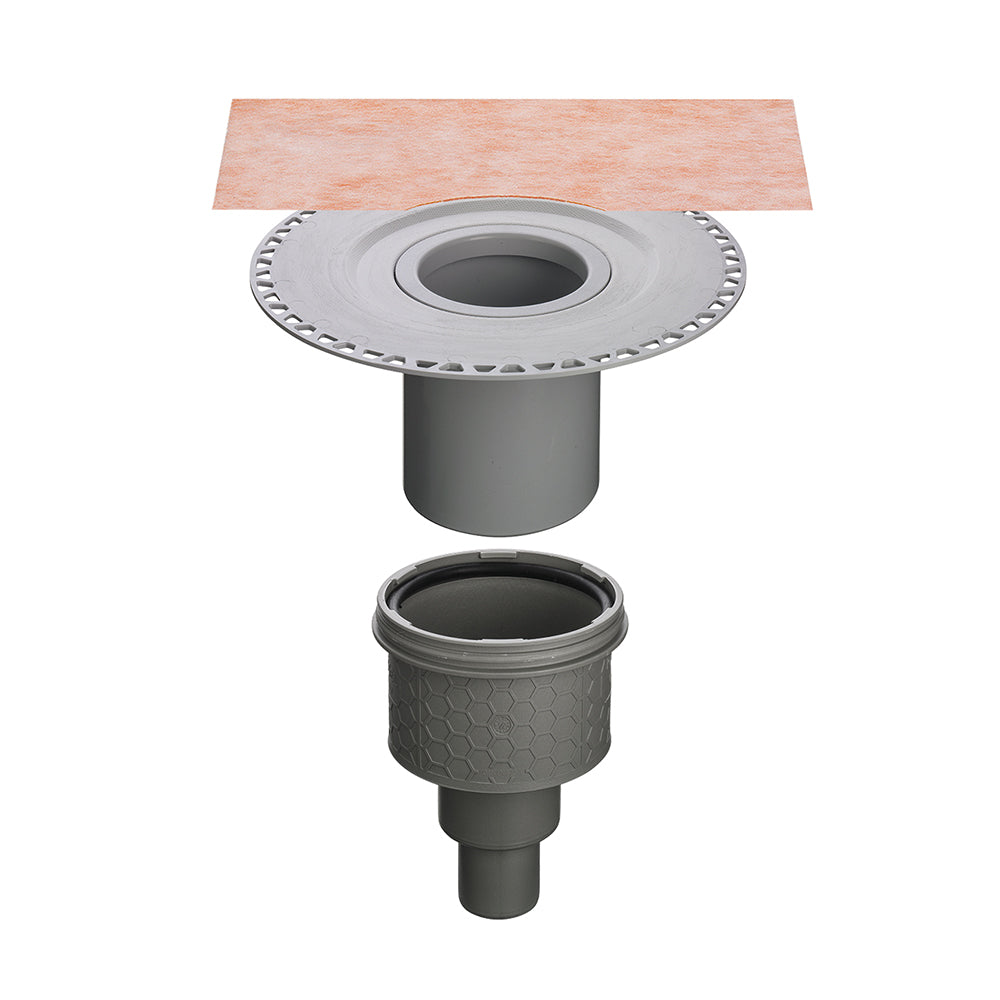

Vertical Exterior Floor Drain Set DN50 without odour trap – KDBV50B

Floor drain set DN 50 without odour trap. Drain DN 50 (50 mm) outlet.
Drain capacity: 1.4 l/s (84 l/min)
Product Code: KDBV50B
Supplied unit:
–Drain body
–Thin-set insert DN 125
–Schluter KERDI Collar
This trap is for use with 100 x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBV50B - Cross Section

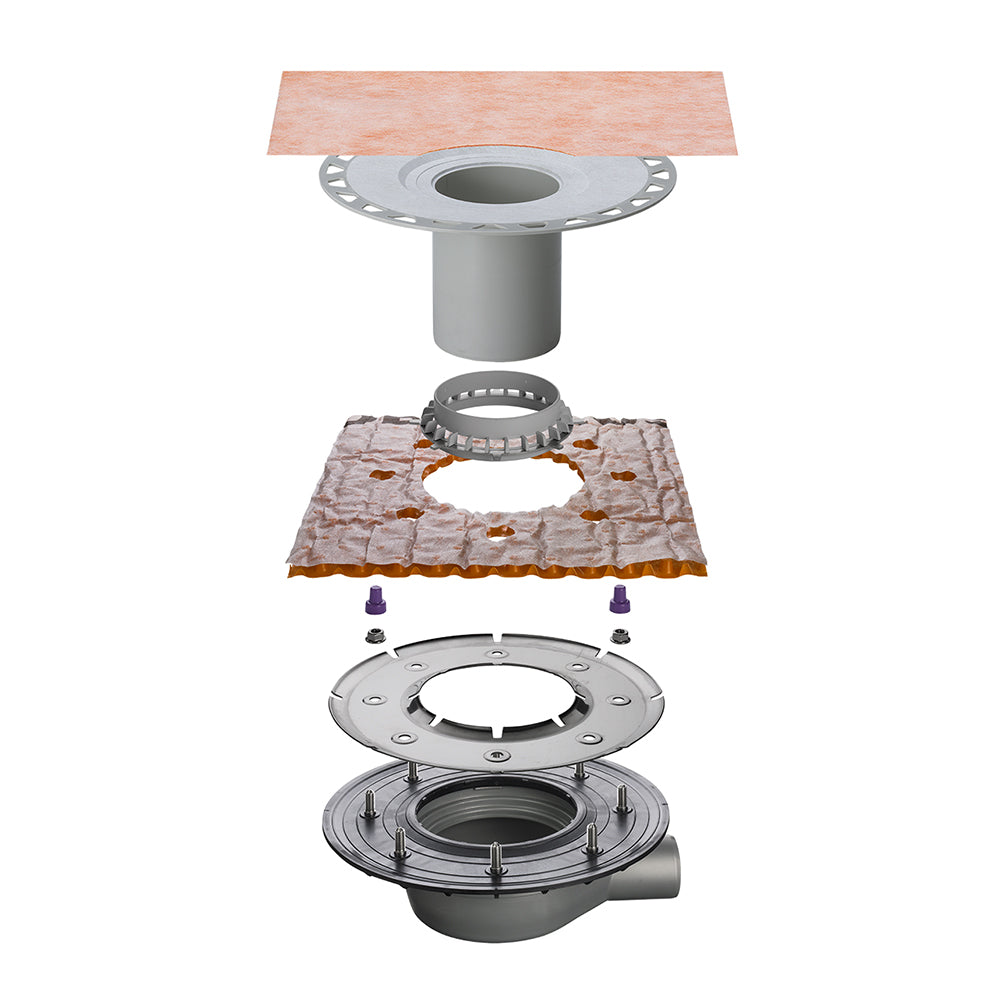

Horizontal Exterior Floor Drain Set DN50 without odour trap – KDBH50MSBB

Floor drain set DN 50 without odour trap with sealing flange to create 2-level drainage of surface water and seepage in conjunction with drain body.
Drain capacity: 1.4 l/s (84 l/min)
Product Code: KDBH50MSBB
Supplied unit:
–Drain body incl. sealing flange
–Stainless steel clamping ring
–Schluter TROBA PLUS drainage collar 300 x 300 mm
–Perforated inlet element
–Thin-set insert DN 100
–Schluter KERDI Collar
This trap is for use with 100 x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBH50MSBB - Cross Section

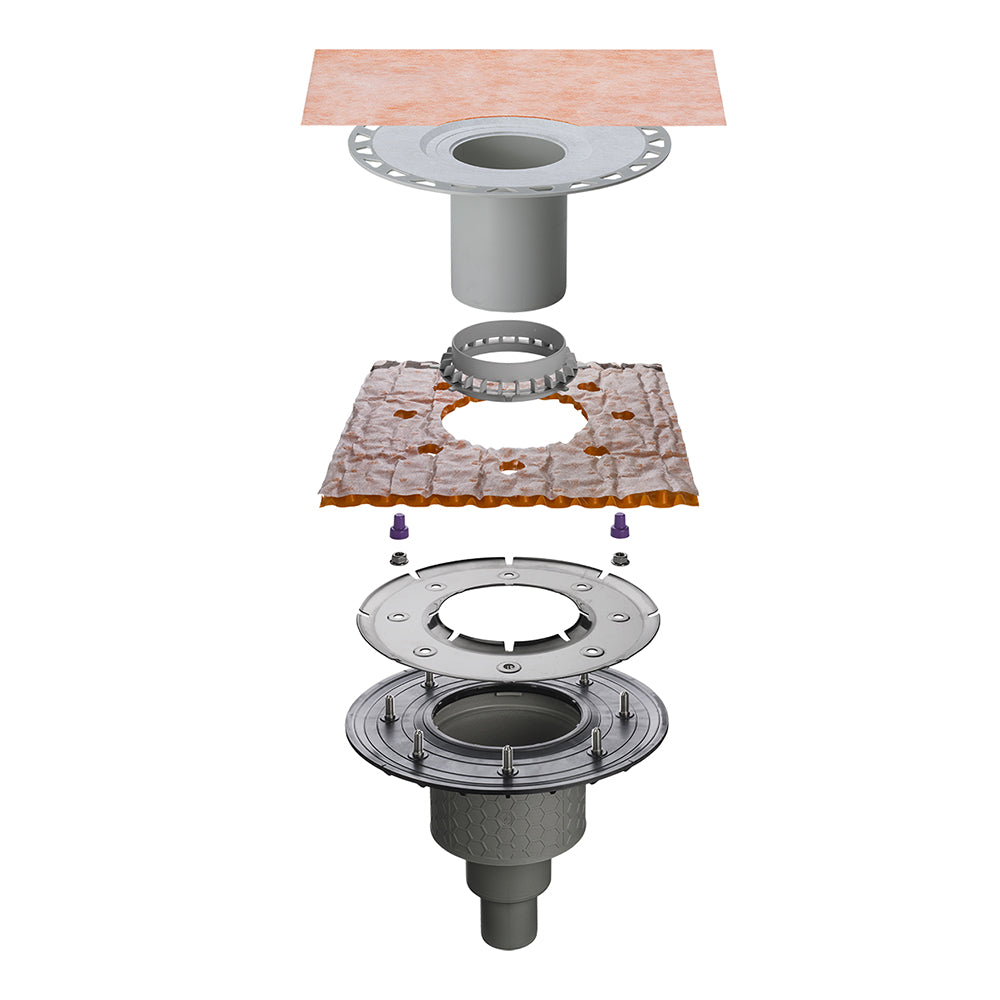

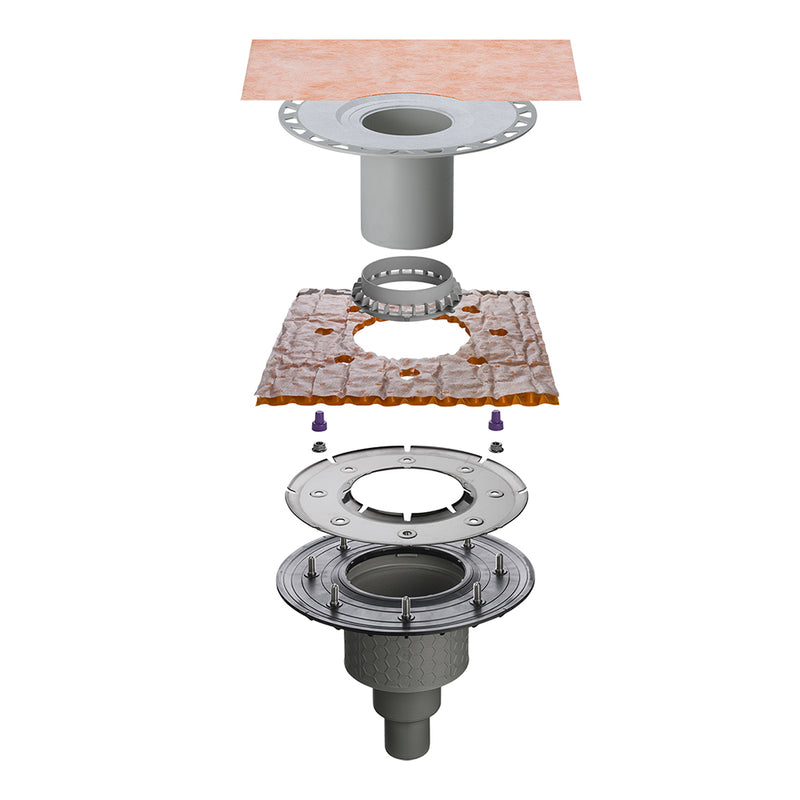

Vertical Exterior Floor Drain Set DN50 without odour trap – KDBV50MSBB

Floor drain set DN 50 without odour trap with sealing flange to create 2-level drainage of surface water and seepage in conjunction with drain body.
Drain capacity: 1.4 l/s (84 l/min)
Product Code: KDBV50MSBB
Supplied unit:
–Drain body incl. sealing flange
–Stainless steel clamping ring
–Schluter TROBA PLUS drainage collar 300 x 300 mm
–Perforated inlet element
–Thin-set insert DN 100
–Schluter KERDI Collar
This trap is for use with 100 x 100mm and 150mm x 150mm Schluter KERDI DRAIN Grate/Frame sets with no odour trap.


Schluter KERDI DRAIN KDBV50MSBB - Cross Section

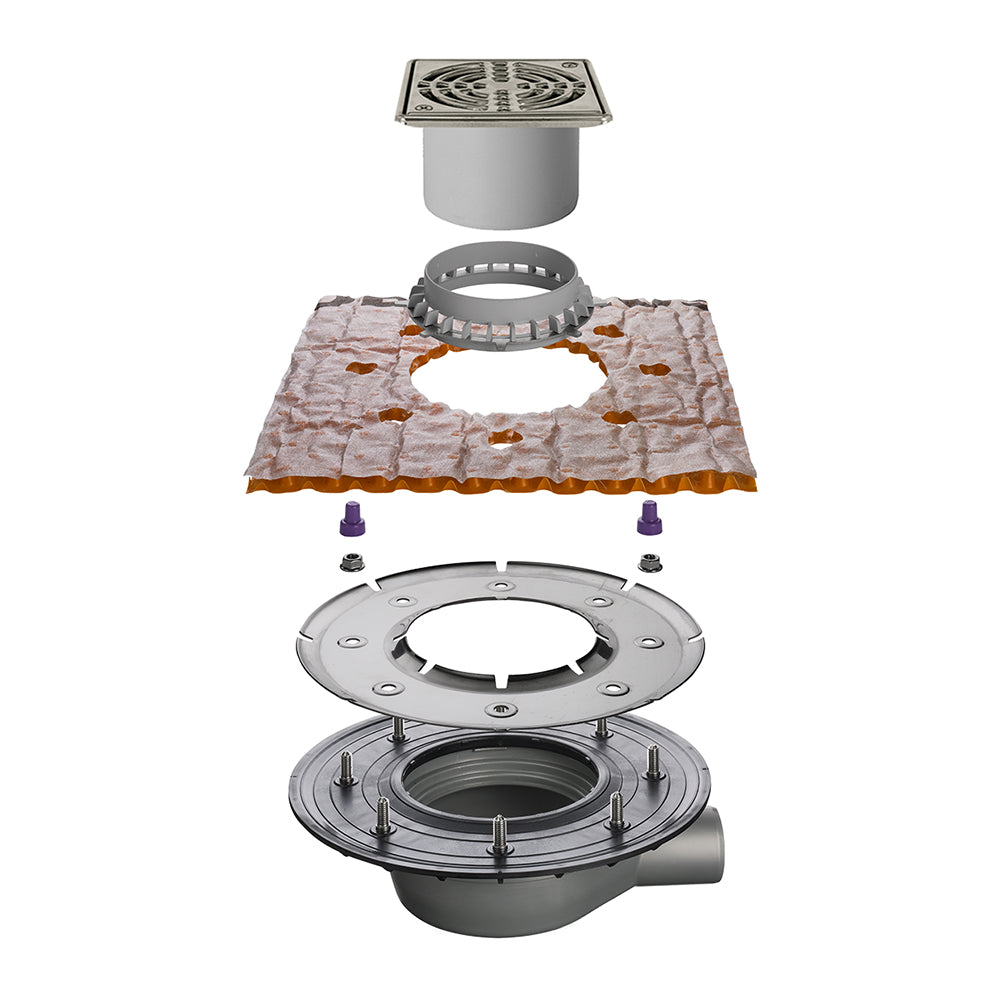

Horizontal Exterior Floor Drain Set DN50 without odour trap – KDBH50ASLVB

Floor drain set DN 50 without odour trap with sealing flange to create 2-level drainage of surface water and seepage in conjunction with drain body.
Drain capacity: 1.4 l/s (84 l/min)
Product Code: KDBH50ASLVB
Supplied unit:
–Drain body incl. sealing flange
–Stainless steel clamping ring
–Schluter TROBA PLUS drainage collar 300 x 300 mm
–Perforated inlet element
–Insert for loose installation including grate/frame set R15 ED1 S
–Schluter KERDI Collar
This trap comes complete with a 150mm x 150mm KERDI DRAIN Grate/Frame Set – R15ED1S.


Schluter KERDI DRAIN KDBH50ASLVB - Cross Section

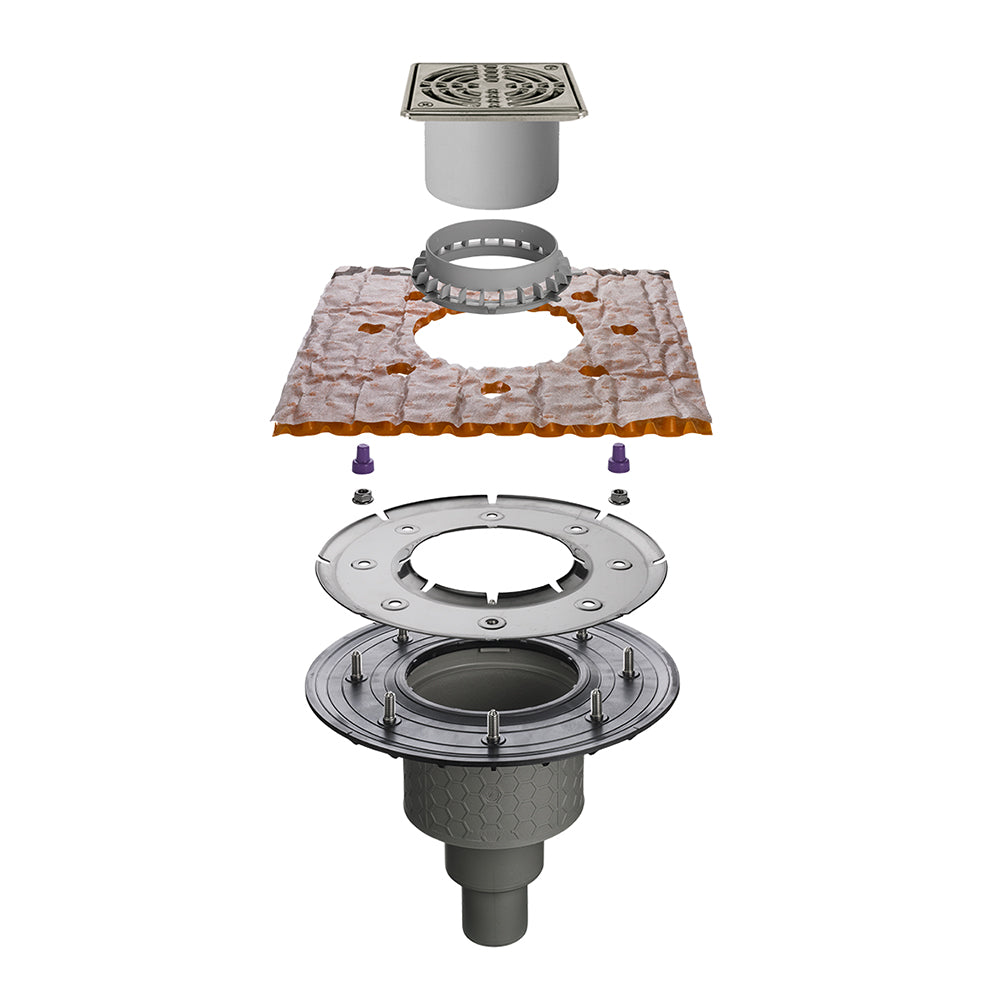

Vertical Exterior Floor Drain Set DN50 without odour trap – KDBV50ASLVB

Floor drain set DN 50 without odour trap with sealing flange to create 2-level drainage of surface water and seepage in conjunction with drain body.
Drain capacity: 1.4 l/s (84 l/min)
Product Code: KDBV50ASLVB
Supplied unit:
–Drain body incl. sealing flange
–Stainless steel clamping ring
–Schluter TROBA PLUS drainage collar 300 x 300 mm
–Perforated inlet element
–Insert for loose installation including grate/frame set R15 ED1 S
–Schluter KERDI Collar
This trap comes complete with a 150mm x 150mm KERDI DRAIN Grate/Frame Set – R15ED1S.


Schluter KERDI DRAIN KDBV50ASLVB - Cross Section
